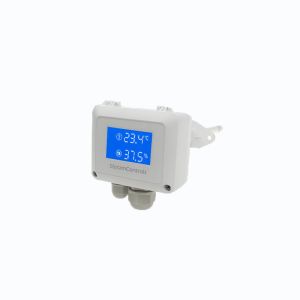

Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display

  • 1
  • 2

Brand Name : Keramcontrols

Model Number : KTH500

Certification : CE

Place of Origin : China

MOQ : 10

Price : $55-$75/pic

Payment Terms : L/C, T/T

Supply Ability : 1000pics/month

Delivery Time : 7days

Packaging Details : Carton

Temperature Range : DIP Switch

Display : Blacklight LCD

Temperature-measurement range : −35 ··· +80 °C

Accuracy : ±2%(0-90% @25℃)/±3%(90-100%@25℃)

Humidity-measurement range : 0 ··· 100 %RH

Housing protection : IP65

Housing material : PC&ABS,UL94-V0

Operating temperature : -35 ··· +70°C

Contact Now

Replaceable vaisala temp humidity transducer

Description

Temperature and humidity sensor is a sensor device equipped with humidity and thermal sensitive elements, which can be used to measure temperature and humidity. Some have on-site display, and some do not. Temperature and humidity sensors are widely used in various fields of production and life due to their small size and stable performance.

Feature

  • LCD display

Large size backlight display

  • Shell connected by hinge

More convenient wiring and setting

  • M16 M20 double cable gland

Cable size φ5…12mm

  • Smooth and flflat surface

Prevent the pollution of the shell surface in harsh environment

  • IP65/NEMA4

Application

  • HVAC system
  • Greenhouse
  • Food transportation
  • Cold storage and refrigeration
  • Clean room environment monitoring

Technical Data

Model KTH500
Power Supply 16-30VDC(2wire 4-20mA)/16-30V AC or V DC (0-5V/0-10V/4-20mA/RS-485 )
Output 4-20mA/0-5V/0-10V/RS-485
Operating Temperature -30…+70℃
Storage Temperature -40…+60℃
Operating Humidity 0...100%RH
Temperature Range DIP Switch
Display Backlight LCD
Maximum Wind/Flow Speed 30m/s
Electromagnetic compliance EN61326-1,Industrial Environment
Housing Material PC&ABS,UL94V-0
Protection Class IP65/NEMA 4
Cable Gland M16*1.5
Measurement Performance-Temperature
Measurement Range -35...+80℃
Accuracy ±0.3℃(20-60℃)
Temperature Dependence ±0.01℃/℃
Measurement Performance-Humidity
Measurement Range 0...100%RH
Accuracy ±2%(0-90% @25℃)/±3%(90-100%@25℃)
Stability in Typical HVAC Applications ±0.01RH/Year

Dimension(mm)

Replaceable Vaisala Temp Humidity Transducer With Backlight LCD DisplayReplaceable Vaisala Temp Humidity Transducer With Backlight LCD Display

Measuring range adjustment

Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display

Ordering guide

KTH500——Output——Installation——Filter

Model Output Installation Filter
KTH500 4-20mA(2 wire) (E) Wall (W) PTFE (P)
4-20mA(3 wire) (F) Duct (D) Stainless (S)
0-5V/0-10VAD(3 wire) (G)
RS-485 (H)

Replaceable Vaisala Temp Humidity Transducer With Backlight LCD Display

Replaceable Vaisala Temp Humidity Transducer With Backlight LCD DisplayReplaceable Vaisala Temp Humidity Transducer With Backlight LCD Display
